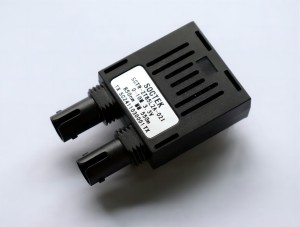

10M 1X9 Dual Transmitter Module

Product Description
SOCTEK¡¯s SCTR-2T85L2A-02I Dual Transmitter module is the perfect solution for low -speed communication networks.The product is dual-channel optical transmitter module. Supportes data rates up to 10Mbps. The module is compliant with the 1¡Á9 footprint.The transmitter module provides the system designer with products to RS232/RS485/RS422 receptacle fiber transmission.

Product Features
¡ñ VCSEL Laser Diode Transmitter
¡ñ Up to 2 Km on 62.5/125¦Ìm MMF
¡ñ 3.3Vpower supply
¡ñ SC/ST/FC duplex optical interface
¡ñ TTL Input
¡ñ Class 1 Laser International Safety Standard IEC 825 Compliant
¡ñ Operating case temperature range (Industrial£º -40¡ãC to +85¡ãC)

Application
¡ñ RS232/RS485/RS422 receptacle fiber transmission
¡ñ Other optic link

Absolute Maximum Ratings
Operating of the transceiver beyond the Absolute Conditions Listed in Table 1 will degrade or damage the product. It¡¯s not implied that the product would function above the recommended operating environment, it¡¯s possible to reduce the reliability and lifetime of device if Recommended Operating Environment is exceeded (Refer to table 2)

Table 1--- Absolute Maximum Conditions

Table 2--- Recommended Operating Environment and Electrical Characteristics

Optical Parameters
Table 3--- SCTR-2T85L2A-02I Transmitter Optical Characteristics
(Ambient Operating Temperature Ta=+25¡À5¡ãC, VCC = 3.3¡À0.2V)

Note1£ºThe optical power is launched into 62.5/125¦Ìm MMF.
Note2£ºWith 10Mbps. If keep 0 1 level duty ratio of 45%:55%

Electrical Parameters
Table 4--- Transmitter Electrical Characteristics
(Ambient Operating Temperature Ta=+25¡À5¡ãC, VCC = 3.3 ¡À0.2V)

Note1£ºTTL

Mechanical Dimensions

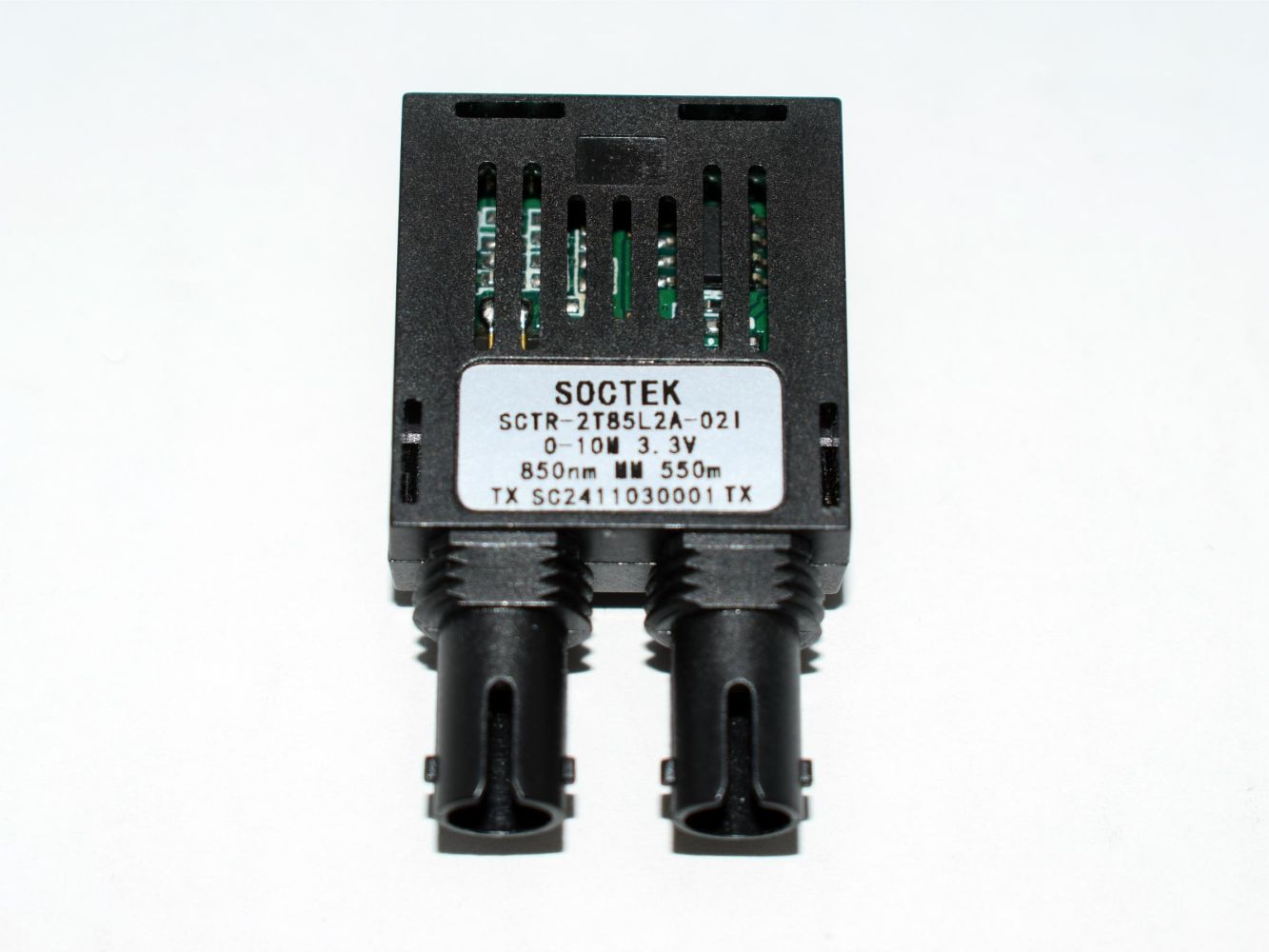

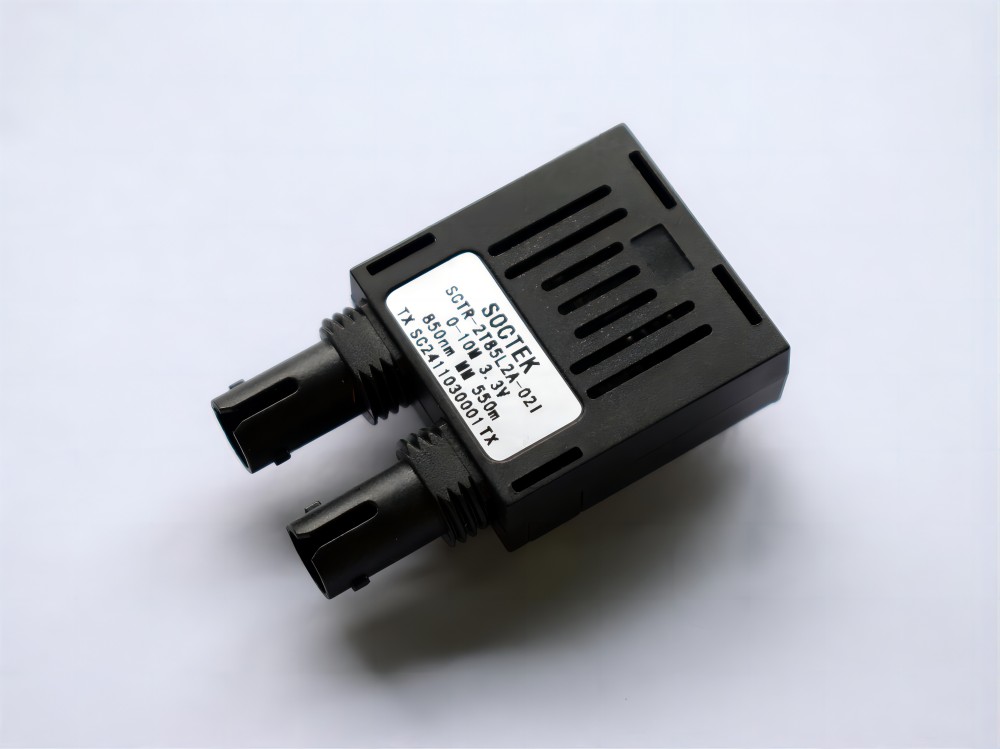

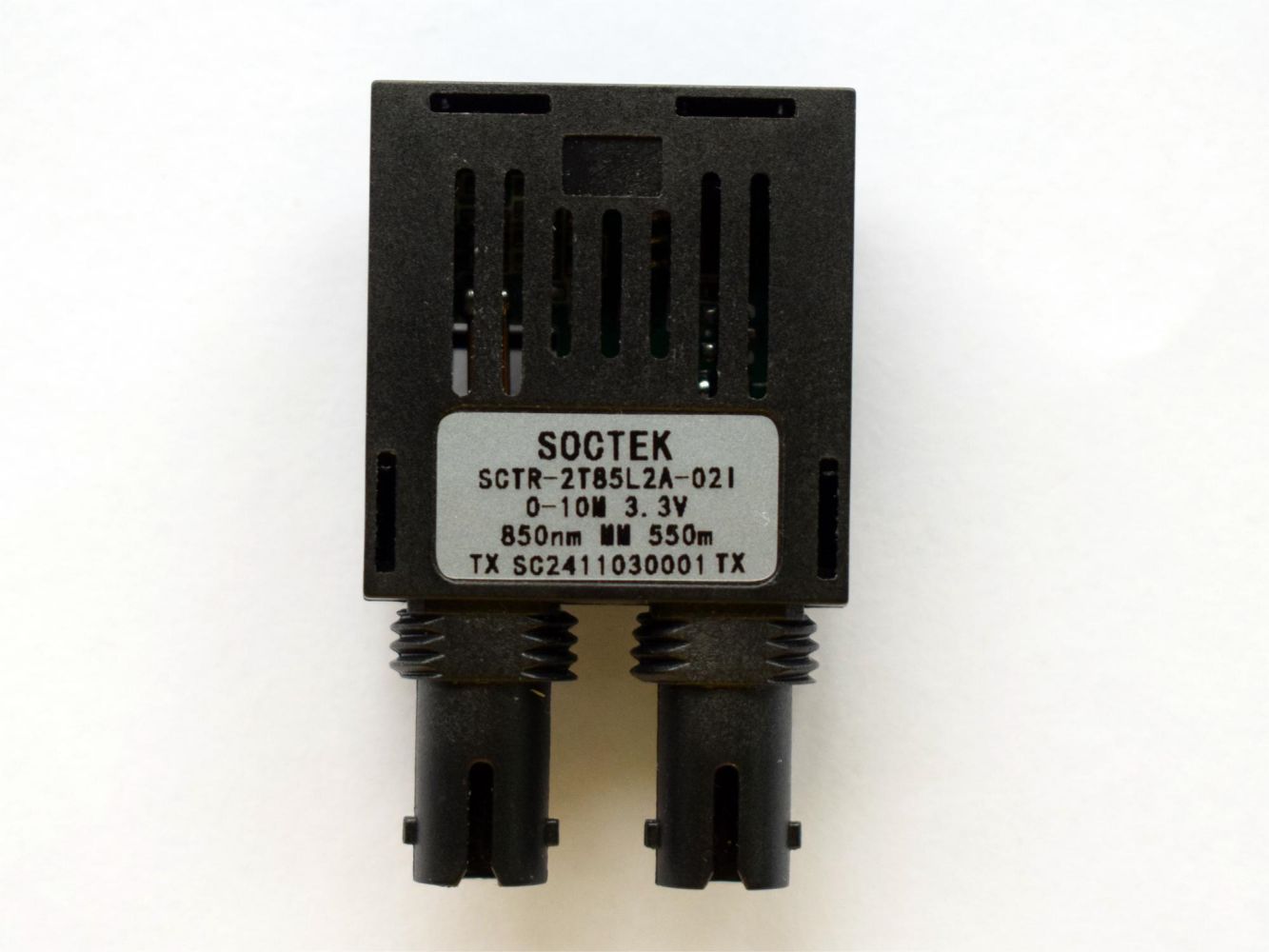

²úƷʵÎïͼչʾ£º

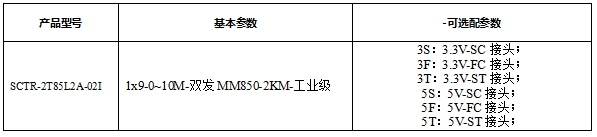

Order Information

×¢£º±¾²úÆ·ÓÐÌìϲú»¯ÐͺſÉÑ¡

±¾²úƷΪ¹âÄ£¿é1x9ϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈôÓÐÐèÒª£¬ÇëÁªÏµ大宝娱乐¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by SOCTEK before they become applicable to any particular order or contract. In accordance with the SOCTEK policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of SOCTEK or others. Further details are available from any SOCTEK sales representative.
