C-Band 20/40 GHz Extended Temperature Intensity Modulator

Description
F-tone Networks Broadband Analog Intensity Modulators combine high linearity with low driving voltage and small footprint, covering frequency range from 20 GHz to beyond 40 GHz (FT-46-AM20-XT: 20 - 30 GHz; FT-46-AM40-XT: > 30 GHz).
The experience and know-how of F-tone Networks engineers is available to customize our products to the customer¡¯s specific requirements.

Features
¡ñ Titanium Indiffused Waveguides
¡ñ X-Cut LiNbO3
¡ñ Operating at C+L-Band
¡ñ Electro-Optic Bandwidth > 32 GHz
¡ñ Low Drive Voltage Compatible with Commercially Available Drivers
¡ñ Low Optical Insertion Loss
¡ñ Integrated Photodiode
¡ñ Integrated Polarizer
¡ñ Hermatically Sealed
¡ñ Operating and Storage Temperature at - 55 to + 85¡ãC

Applications
¡ñ Digital/Analog Transmission
¡ñ High Frequency RF over Fiber Optic Links
¡ñ Delay Lines Systems
¡ñ Instrumentation

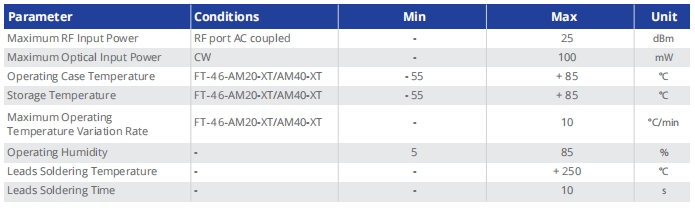

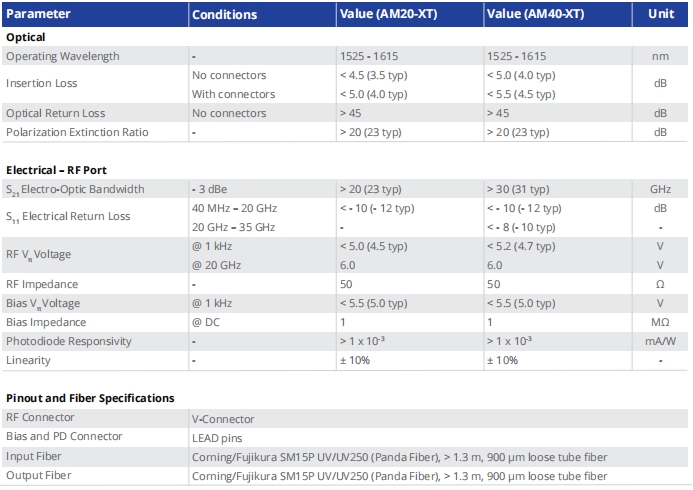

Optical and Electrical SpecificationsAbsolute Maximum RatingsMechanical Outline

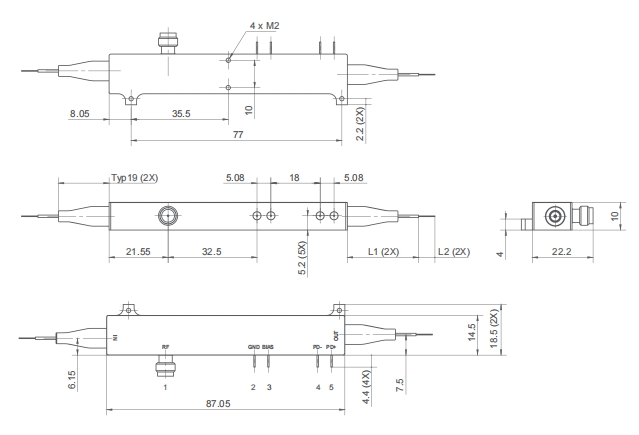

FT-46-AM20-XT and FT-46-AM40-XT have same footprints. All dimensions measured in mm. L1 is fiber length with 900 ?m loose tube. L2 is length of bare fiber.

 大宝娱乐 | F-tone Networks
ÆóÒµÓÊÏ䣺sales@f-tone.com
ÆóÒµÍøÕ¾£ºwww.f-tone.com
ÆóÒµÍøÕ¾£ºwww.sfpgmk.com
ÆóÒµµç»°£º028-85255257
ÆóÒµ´«Õ棺028-85977702

×¢£º±¾²úÆ·ÓÐÌìϲú»¯ÐͺſÉÑ¡
±¾²úƷΪFT-46ϵÁÐ
£¬½öչʾ²¿·Ö²ÎÊý
£¬ÈôÓÐÐèÒª
£¬ÇëÁªÏµ大宝娱乐¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
