SFP BIDI Transceiver,3G-SDI,20/35/40km

Product Description
      F-tone Networks¡¯s FTCS-Bxx3G-xxxx series of transceiver modulesare the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 3Gbps. The module is fully compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA).These transceiver modules provides the system designer with Camera, Video, HDTV/SDTV Fibre Channel applications.

Product Features
¡ñ DFB Laser Diode Transmitter
¡ñ Up to 40 Km on 9/125¦Ìm SMF
¡ñ 3.3V power supply
¡ñ LC duplex optical interface
¡ñ CML Differential Input/Output and LVTTL signal detect
¡ñ Support Video Pathological Patterns for SD-SDI,HD-SDI and 3G-SDI
¡ñ Class 1 Laser International Safety Standard IEC 825 Compliant
¡ñ Operating case temperature range (Standard£º0 to+70¡æ)

Application
¡ñ SMPTE 259M/292M/424M Compliant Electrical-to-Optical Interfaces
¡ñ HDTV/SDTV Fibre Channel applications

Absolute Maximum Ratings
Operating of the transceiver beyond the Absolute Conditions Listed in Table 1 will degrade or damage the product. It¡¯s not implied that the product would function above the recommended operating environment, it¡¯s possible to reduce the reliability and lifetime of device if Recommended Operating Environment is exceeded (Refer to table 2)
Table 1--- Absolute Maximum Conditions

Table 2--- Recommended Operating Environment and Electrical Characteristics

Optical Parameters
Table 3--- FTCS-B133G-20xx Transceiver Optical Characteristics (Ambient Operating Temperature Ta=+25¡À5¡ãC, VCC = 3.3¡À0.2V)

Note1 £ºThe optical power is launched into 9/125¦Ìm SMF.
Note2 £ºWith a PRBS 223-1 test pattern@ 3000Mbps £¬The sensitivity of the Pathological Patterns¨Q-16.

Table 4--- FTCS-B153G-20xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25¡À5¡ãC, VCC = 3.3¡À0.2V)

Note1 £ºThe optical power is launched into 9/125¦Ìm SMF.
Note2 £ºWith a PRBS 223-1 test pattern@ 3000Mbps £¬The sensitivity of the Pathological Patterns¨Q-16.

Table 5--- FTCS-B133G-35xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25¡À5¡ãC, VCC = 3.3¡À0.2V)

Note1 £ºThe optical power is launched into 9/125¦Ìm SMF.
Note2 £ºWith a PRBS 223-1 test pattern@ 3000Mbps £¬The sensitivity of the Pathological Patterns¨Q-16.

Table 6--- FTCS-B153G-40xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25¡À5¡ãC, VCC = 3.3¡À0.2V)

Note1 £ºThe optical power is launched into 9/125¦Ìm SMF.
Note2 £ºWith a PRBS 223-1 test pattern@ 3000Mbps £¬The sensitivity of the Pathological Patterns¨Q-16.

Electrical Parameters
Table 7--- Transceiver Electrical Characteristics(Ambient Operating Temperature Ta=+25¡À5¡ãC, VCC = 3.3 ¡À0.2V)

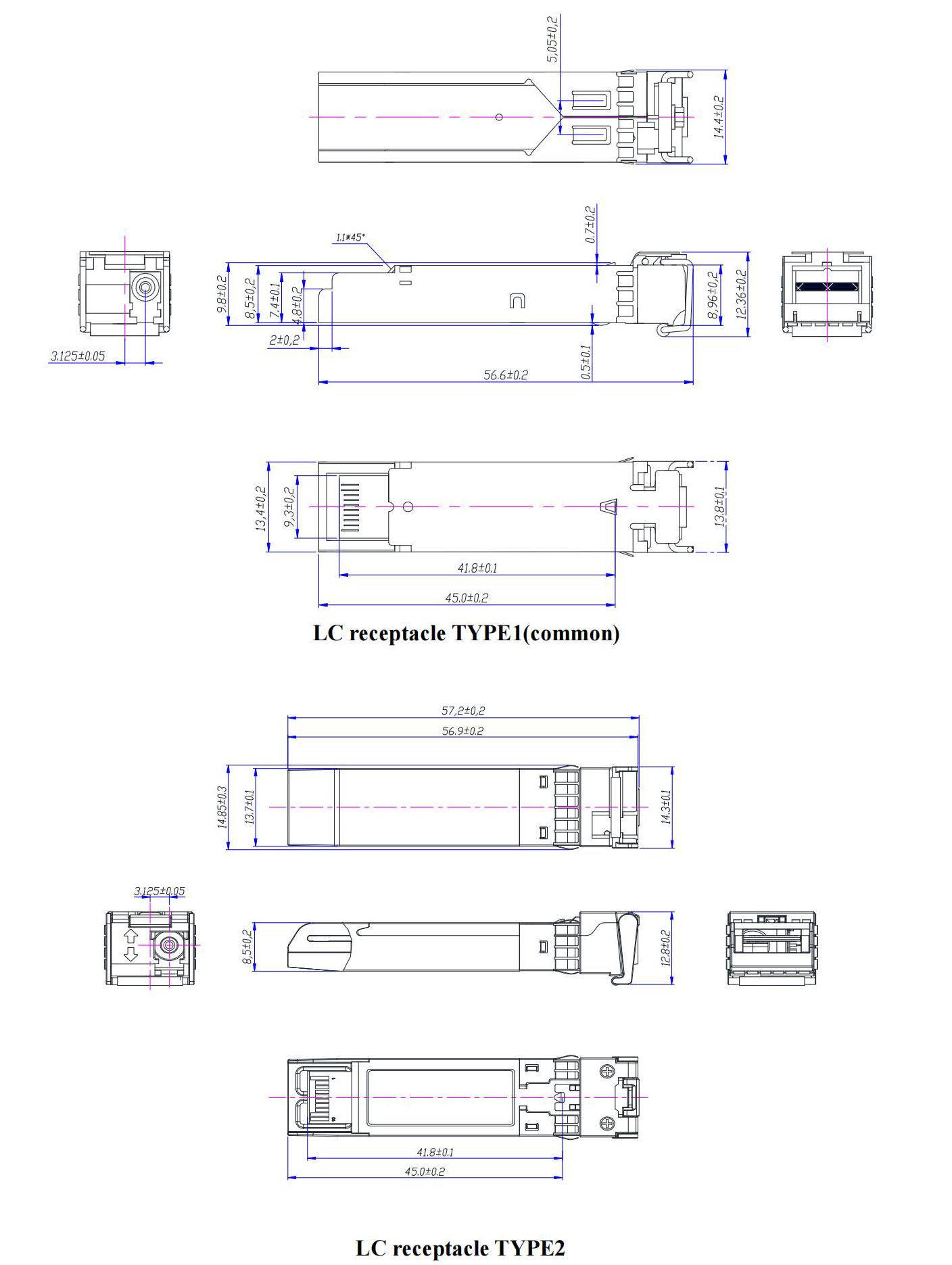

Module Outline Drawing£¨Units in mm)

Order Information

×¢£º±¾²úÆ·ÓÐÌìϲú»¯ÐͺſÉÑ¡
±¾²úƷΪVideo SFPϵÁйâÄ£¿é£¬½öչʾ²¿·Ö²ÎÊý£¬ÈôÓÐÐèÒª£¬ÇëÁªÏµ大宝娱乐¡£

Important Notice
Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
