SFP+ Transceiver,Single Mode,1310nm,10G,10km

Description
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 10km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Product Features
¡ñ Supports up to 10.7Gbps bit rates
¡ñ Hot-pluggable SFP+ footprint
¡ñ 1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
¡ñ Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
¡ñ Compatible with RoHS
¡ñ Single +3.3V power supply
¡ñ Real Time Digital Diagnostic Monitoring
¡ñ Operating case temperature:
      Standard: 0 to +70¡ãC
      Industrial: -40 to +85¡ãC

Applications
¡ñ 10Gbps Optical systems
¡ñ 10GBASE-LR at 10.3125Gbps
¡ñ 10GBASE-LW at 9.953Gbps
¡ñ LTE systems
¡ñ Other Optical links

Absolute Maximum Ratings

Recommended Operating Conditions

Optical and Electrical Characteristics

Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 2³¹-1 test pattern @10312Mbps, BER ¡Ü1¡Á10^-12.
4. Internally AC-coupled.

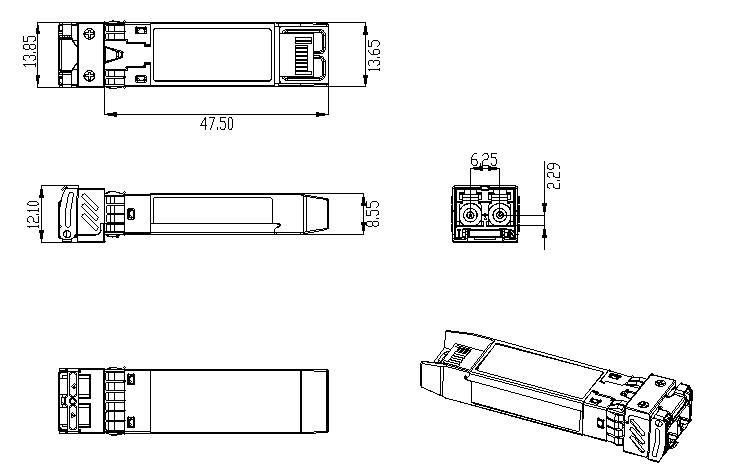

Mechanical DimensionsOrdering information

±¾²úƷΪSFPÌìϲú¹âÄ£¿éϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈôÓÐÐèÒª£¬ÇëÁªÏµ大宝娱乐¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
