C-Band 10 GHz Phase Modulator
Description
C-Band 10 GHz Phase Modulator
Description
F-tone Networks broadband phase modulators combine high linearity with low driving voltage and small footprint, covering all the frequency range up to 10 GHz.
Features
● Titanium-Indiffused Waveguide
● Z-Cut LiNbO3
● Frequency Response up to 10 GHz
● Low Optical Insertion Loss
Applications
● FM Spectroscopy
● Frequency Shifting
● Laser Linewidth Broadening
● Laser Beam Combining
● Quantum Key Distribution
● Interferometric Fiber Sensing

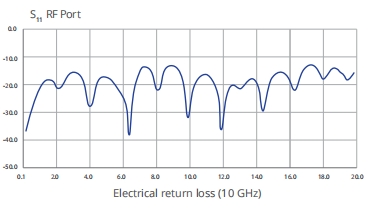

Performance Characteristics

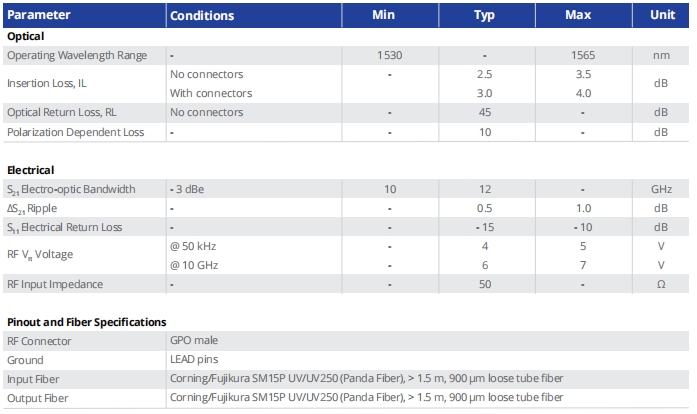

Optical and Electrical Specifications

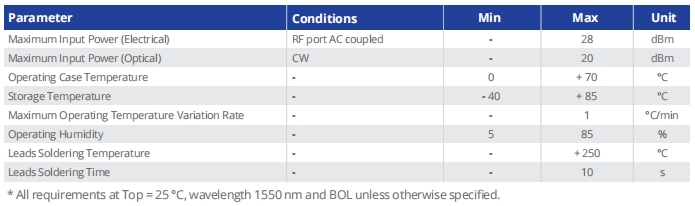

Absolute Maximum Ratings

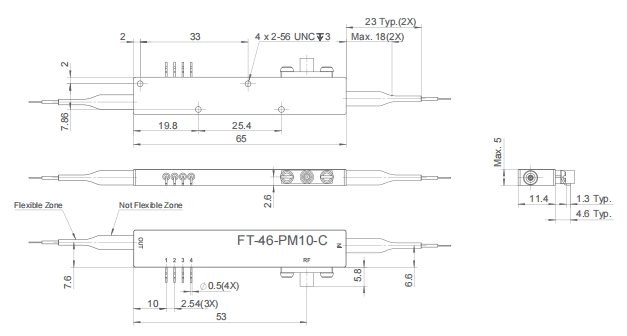

Mechanical Outline
大宝娱乐 | F-tone Networks
企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702
注：本产品有天下产化型号可选
本产品为FT-46系列，仅展示部分参数，若有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
