C-Band 20 GHz x 2 Extended Temperature IQ Modulator

Description
The FT-46-40G-IQ-XT modulator design is based on a dual parallel structure of two Mach-Zehnder modulators embedded in a Mach Zehnder super-structure. Each internal modulator is designed to have EO bandwidth above 20 GHz. Monitor photodiode is provided for automatic bias control. The FT-46-40G-IQ-XT version is provided extended operating temperature at - 55 to + 85¡ãC for different environmental applications.

Features
¡ñ Titanium-Indiffused Waveguide
¡ñ X-Cut LiNbO3
¡ñ Electro-Optic Bandwidth > 30 GHz
¡ñ Low Optical Insertion Loss
¡ñ Compliance with Telcordia GR-468-CORE
¡ñ Extended Operating Temperature at - 55 ¡ãC to + 85 ¡ãC
¡ñ Hermatically Sealed
¡ñ Excellent Linearity

Applications
¡ñ OFDM Coding
¡ñ QPSK Coding
¡ñ QAM Coding
¡ñ CS-SSB (Carrier Suppressed Single Side Band)
¡ñ FMCW LiDAR in Autonomous Driving

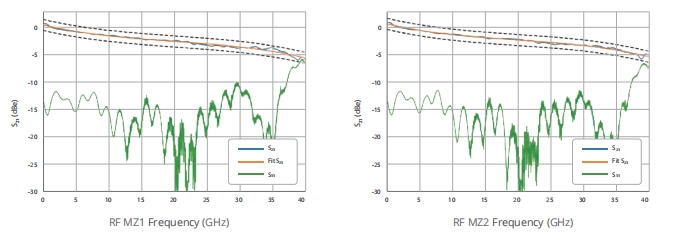

Performance Characteristics

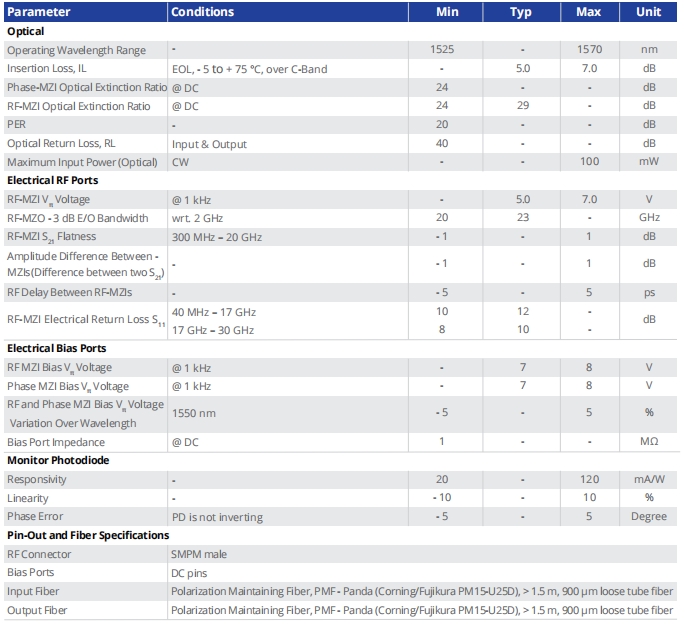

Specifications

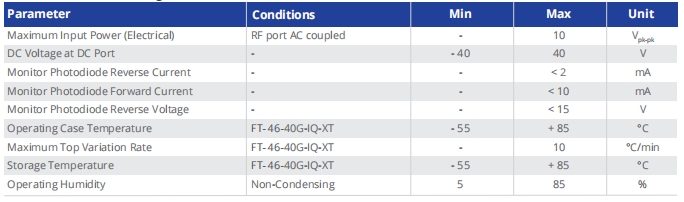

Absolute Maximum Ratings

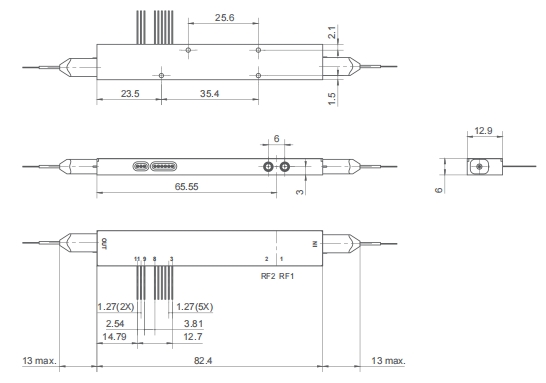

Mechanical Outline

 大宝娱乐 | F-tone Networks
ÆóÒµÓÊÏ䣺sales@f-tone.com
ÆóÒµÍøÕ¾£ºwww.f-tone.com
ÆóÒµÍøÕ¾£ºwww.sfpgmk.com
ÆóÒµµç»°£º028-85255257
ÆóÒµ´«Õ棺028-85977702

×¢£º±¾²úÆ·ÓÐÌìϲú»¯ÐͺſÉÑ¡
±¾²úƷΪFT-46ϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈôÓÐÐèÒª£¬ÇëÁªÏµ大宝娱乐
¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
